FUXIN manufactures custom AG anti-glare cover glass with factory pre-applied high-performance acrylic transfer adhesive for industrial HMI, touchscreen front panels and equipment interfaces. The front AG surface reduces distracting reflections from windows, overhead lighting and other ambient light sources, while the rear adhesive is die-cut and positioned according to the customer's mounting design.
AG Cover Glass with Pre-Applied OCA for Optical Bonding
Cover Glass Mounting & Adhesive Solutions
This ready-to-install construction is intended primarily for frame bonding, perimeter bonding or panel mounting rather than full optical bonding across the active display area. Customers can receive the finished glass with black bezel printing, sensor windows, custom adhesive zones and release liner already prepared for assembly.
Use AG cover glass with pre-applied 3M-type transfer adhesive when the cover glass needs to be mounted to a bezel, housing or panel and you want to reduce adhesive handling during final assembly. Use pre-applied OCA instead when the goal is full optical bonding directly to the touch sensor or display.
Fewer Assembly Steps: The adhesive is already converted and positioned on the glass, reducing manual tape cutting and placement at the customer's assembly line.
Controlled Adhesive Geometry: Adhesive can be supplied as perimeter frames, strips or drawing-defined zones while keeping the active display and sensor areas clear.
Cleaner Handling: Pre-applied adhesive with release liner helps reduce tape contamination, fingerprints and misalignment during assembly.
Consistent Mounting Input: A repeatable glass + adhesive subassembly can help reduce variation before final panel installation.
Ready for Custom Front Panels: The same part can integrate AG surface treatment, strengthening, black printing, icons, sensor windows and custom edge processing.
This distinction is important for both engineering and SEO. High-performance acrylic transfer adhesives such as 3M 468MP are designed for industrial joining and attachment to suitable high-surface-energy materials. They are not a substitute for optically clear OCA across the active display area.
Item | 3M-Type Transfer Adhesive | OCA Optical Adhesive |
Primary Purpose | Mount cover glass / overlay to bezel, housing or panel | Optically bond cover glass to touch sensor or display |
Typical Placement | Perimeter, frame, strips or selected rear-side zones | Full or defined optical area between display layers |
Optical Role | Normally kept outside the active viewing area | Designed to remain within the optical path |
Assembly Result | Frame / panel attachment, often with an air gap to the display | Full optical bonding with the bonded-layer air gap removed |
Best-Fit Product Page | This AG + pre-applied 3M adhesive page | FUXIN AG + pre-applied OCA product page |
When specified by the customer, a 3M 468MP-class high-performance acrylic transfer adhesive can be evaluated for suitable mounting surfaces. The actual adhesive grade should be selected according to the housing material, surface energy, bond width, temperature, humidity, chemical exposure and rework requirement.
For projects that name 3M 468MP specifically, the adhesive is a high-performance 200MP acrylic transfer tape with a nominal adhesive thickness of approximately 0.127 mm. FUXIN can also evaluate equivalent or alternative adhesive grades when the end-use substrate or environmental requirement calls for a different construction.
Reduced Reflections: The AG micro-texture diffuses disturbing ambient reflections from factory lighting, windows and bright indoor sources.
Readable Small UI Elements: The AG level can be selected to reduce glare while preserving text, icons and graph readability on industrial displays.
Custom Matte Appearance: Haze, gloss and surface roughness can be tuned to the device's visual and tactile target.
Mechanical Protection: Chemically strengthened or thermally tempered glass can be selected according to thickness and mechanical requirements.
Integrated Decoration: Black borders, logos, status icons and transparent sensor windows can be silk-screen printed before final adhesive conversion.
To keep this product page differentiated from other AG pages, the primary applications should focus on assemblies where adhesive-backed front glass is a practical purchasing requirement.

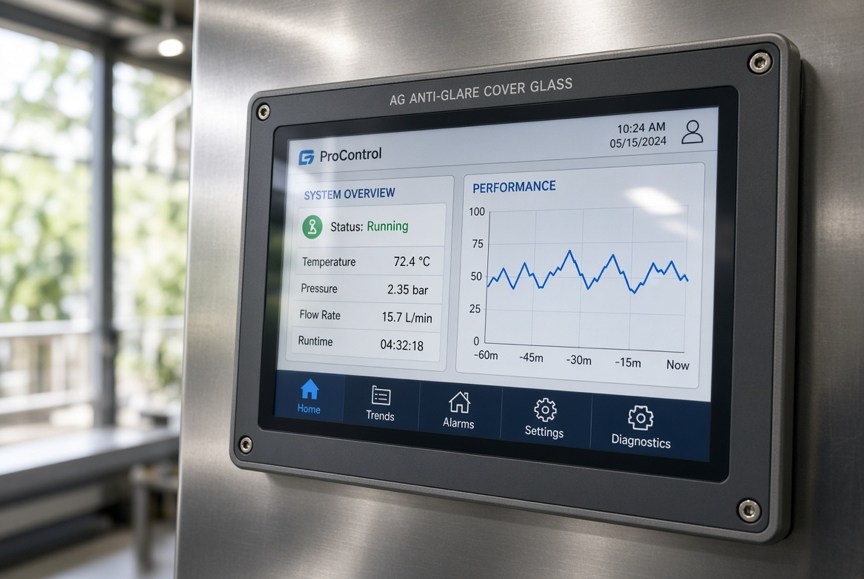

Industrial HMI & Control Panels: Cover glass mounted to metal or plastic front housings around the display opening.

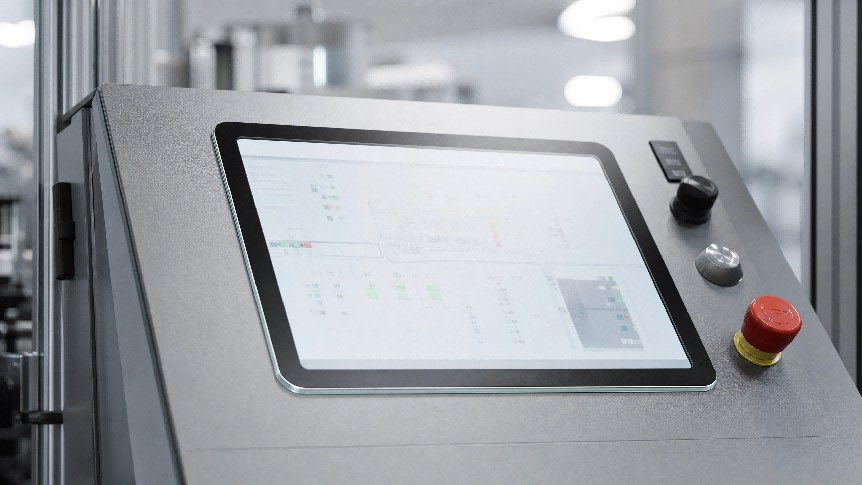

Machine Interfaces: AG front panels for CNC, automation and process-control equipment with perimeter adhesive mounting.
Touchscreen Enclosures: Custom printed glass mounted to bezels or equipment housings while maintaining an air gap or separate touch/display structure.
Kiosks & Self-Service Terminals: Front glass assemblies that require glare reduction, clean decorative mounting and repeatable adhesive geometry.
Smart Equipment Panels: Wall controllers, laboratory instruments and other compact interfaces using adhesive-backed decorative cover glass.
Material | Ultra-clear / low-iron soda-lime or aluminosilicate glass |
Thickness | 0.5 – 6.0 mm |
AG Type | Chemical etching (preferred for durability) |
Gloss Level | 35° – 110° (adjustable) |
Haze | Typically 5% – 25% (customizable) |
Transmittance | ≥89% – 93% |
Hardness | 6H – 9H (tempered / strengthened) |
Adhesive | Pre-applied 3M high-performance acrylic (e.g. 468MP class) |
Optional Coatings | AF anti-fingerprint, AR anti-reflective |
Operating Temperature | -40°C to +85°C / +180°C (depending on glass & adhesive) |
Custom Options | CNC cutting, printing, holes, special shapes |
Engineering note: The source draft lists fixed optical, hardness and temperature ranges. For this product page, those values should not be presented as universal guarantees. AG optics depend on the actual surface grade, while adhesive temperature and environmental performance depend on the exact 3M or equivalent adhesive selected for the project.
The adhesive pattern should be designed from the mechanical assembly, not added as an afterthought. A correct adhesive layout must provide enough bond area while avoiding the active display, touch-sensor zones, optical windows and any required ventilation or service areas.
l Define the bezel / housing material and surface finish.
l Identify the active viewing area and no-adhesive zones.
l Set the perimeter bond width or strip geometry.
l Review printing step height and glass flatness.
l Select the adhesive family according to substrate surface energy and environment.
l Confirm liner style, peel direction and assembly sequence.
l Validate the finished glass + adhesive subassembly on the customer's real housing.
Information | What to Provide |
Glass Drawing | Overall size, active area, holes, cutouts, edge profile and tolerance |
Mounting Structure | Bezel / housing design and mating surface |
Substrate Material | Metal, high-surface-energy plastic, coated surface or other material |
AG Requirement | Haze, gloss, Ra, sparkle or reference sample |
Printing | Black border, icons, logos and sensor-window artwork |
Adhesive Grade | Specified 3M model if already approved, or allow FUXIN to recommend |
Adhesive Pattern | Perimeter width, strip location, die-cut shape and keep-out zones |
Adhesive Thickness | Required bond-line thickness or assembly gap |
Environment | Temperature, humidity, chemical, UV, vibration or cleaning requirements |
Assembly | Manual or automated installation, peel direction and rework requirement |
Quantity | Prototype quantity and expected annual production volume |

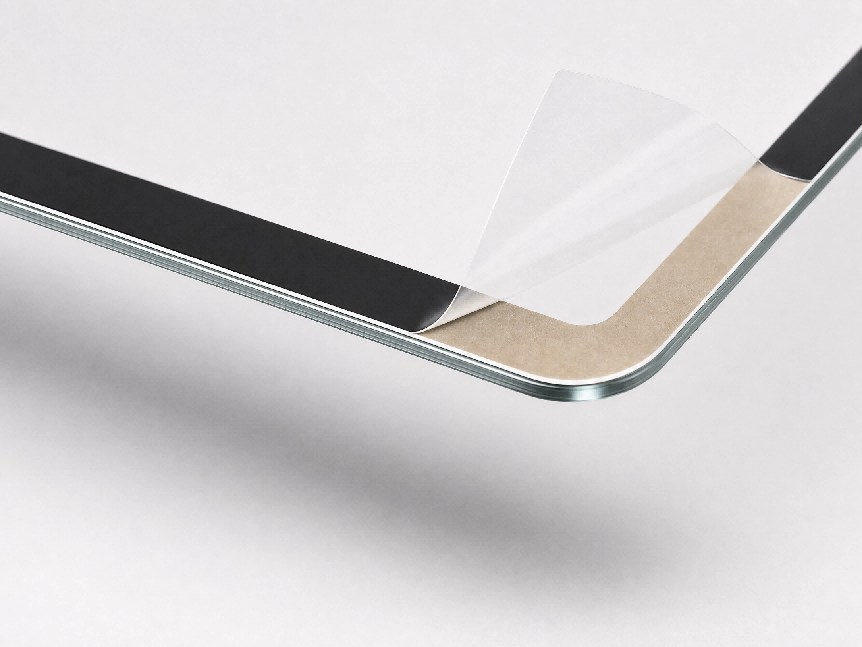

It is custom anti-glare cover glass supplied with a high-performance acrylic transfer adhesive already die-cut and applied to selected rear-side mounting areas. The glass can arrive ready for installation onto a bezel, housing or equipment panel.
No. 3M 468MP is a high-performance acrylic transfer adhesive used for industrial attachment and lamination. OCA is an optically clear adhesive designed for bonding layers inside the display optical path.
Yes. Perimeter frames, strips and other custom adhesive patterns can be die-cut according to the mounting drawing while keeping the active display and sensor areas free of adhesive.
The correct grade depends on the bezel or housing material, surface energy, bond width, temperature, humidity, chemical exposure and required rework behavior. A customer-specified grade can be used, or FUXIN can evaluate a compatible adhesive for the project.
Yes. FUXIN can integrate black bezel printing, logos, icons and transparent functional windows before the rear-side adhesive is applied.
Yes. AF can be added to the front AG surface when the selected surface stack is compatible, providing glare reduction together with easier cleaning.
Not by itself when using standard mounting transfer adhesive. For full optical bonding to a touch sensor or display, use an optically clear adhesive such as OCA and a bonding process designed for the active optical area.
Please provide the glass drawing, mounting substrate, AG target, printing artwork, adhesive grade or performance requirement, adhesive pattern, operating environment and expected production volume.
