ITO conductive glass is glass coated with indium tin oxide (ITO), offering high transparency and electrical conductivity. It’s widely be used on LCD/LED displays, touchscreens, solar cells, smart windows, OLED lighting, and so on. It enables transparent electrodes in electronic devices where both light passage and electric current are needed.
Customized Specification
Glass material | Soda-lime glass or borosilicate (custom) |
Thickness | 120–180 nm (adjustable for target resistivity) |
Sheet resistance | 10 – 15 Ω/sq (custom: 5 – 500 Ω/sq) |
Size | Custom Size |
Edge | Fine Polished Edge |
Processing | Cutting Edging Drilling Tempering |
Feature | Waterproof, Anti-Uv, Solar Powered, Magnetic Screen, high light transmittance, Durable |
Coating | ITO |
Surface roughness | <1.0 nm Ra (polished side) |
Application | Display Screen, Medical , School, Home Office, Outdoor, Living Room, Office Building, Hospital, Villa |
Packing | Wooden Cases,carton,foam paper |
Place of Origin | Dongguan, China |
High Optical Transparency: It allows over 85% of visible light to pass through, making it ideal for display and touch applications.
Excellent Electrical Conductivity: The thin ITO coating provides low surface resistivity, enabling efficient current flow.
Good Substrate Adhesion & Durability: The conductive film bonds strongly to the glass, offering mechanical hardness, chemical stability, and wear resistance.
Smooth Surface: It features an extremely flat and uniform surface, which is crucial for precise thin-film deposition and patterning in device fabrication.
1. High Transmittance + Low Resistivity -No Trade-off

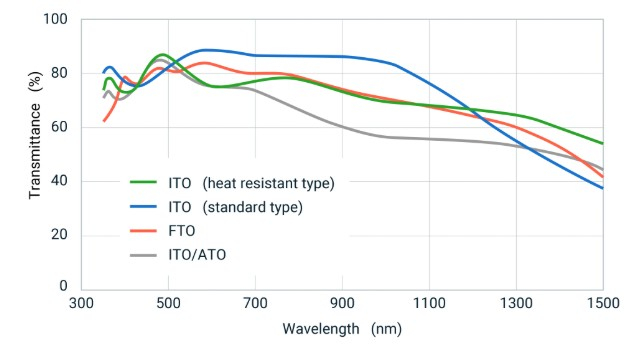

Most ITO glasses sacrifice optical clarity for lower resistance. Our sputtering process achieves >86% transmittance at 550nm while maintaining a tight 10–15 Ω/sq range – critical for responsive touchscreens and bright displays.
2. Precision 300×300×1.1mm Substrate
Size: 300mm × 300mm (±0.2mm)
Thickness: 1.1mm (±0.05mm)
Edge: Fine ground or polished (customizable)
Flatness: <0.1% per 100mm
3. Fully Customized – Your Design, Our Glass
We offer tailor‑made solutions:
Size: From 10×10mm to 500×500mm (or cut to your drawing)
Resistivity: 5 Ω/sq, 15 Ω/sq, 30 Ω/sq, 100 Ω/sq, etc.
ITO coating on one or both sides
Patterned ITO (etching service available)
Additional layers: SiO₂ barrier, anti‑glare, anti‑fingerprint
4. Rigorous Quality Control
Every batch is tested for:
Sheet resistance (4‑point probe)
Transmittance (UV‑Vis spectrophotometer)
Surface uniformity (map scanning)
Adhesion & environmental stability (tape test, 85/85 humidity)
FAQ
Can I get a sample before bulk order?
Yes, samples (≤10 pcs) are available. Lead time: 5–7 working days.
How does 10–15 Ω/sq compare to standard ITO glass?
Typical ITO glass is 100–300 Ω/sq. 10–15 Ω/sq is ultra‑low resistivity, ideal for high‑speed touch sensing and large‑area displays.
Is the glass chemically strengthened?
Standard is non‑strengthened. We can provide chemically strengthened (ion‑exchange) glass upon request – please specify.
What is the maximum size you can coat?
Up to 550×650 mm. Larger sizes available for specialized orders.
Do you provide cutting, drilling, or edge grinding?
Yes. All secondary processing is done in‑house.
How should I store the ITO glass?
Store in a dry, dust‑free environment (RH <40%). Avoid direct handling of the coated surface.
