FUXIN AG anti-glare tempered glass cover lens belongs to the AG Anti Glare Screen Glass product line. Available in full thickness range from 0.7mm to 4mm, it adopts advanced chemical etching or spray coating AG technology to diffuse ambient light, effectively eliminating mirror reflection and improving screen readability in bright environments.

With average light transmittance above 92% and adjustable haze from 5% to 15%, the glass delivers balanced anti-glare performance and image clarity. It is chemically or thermally strengthened for 6–9H surface hardness, fully compatible with capacitive touch screens and stylus operation. Widely used in industrial HMIs, medical displays, public kiosks, automotive touch panels, outdoor digital signage and smart home terminals. We support custom CNC fabrication, edge finishing, silk screen printing and optional AF/AR composite coatings.

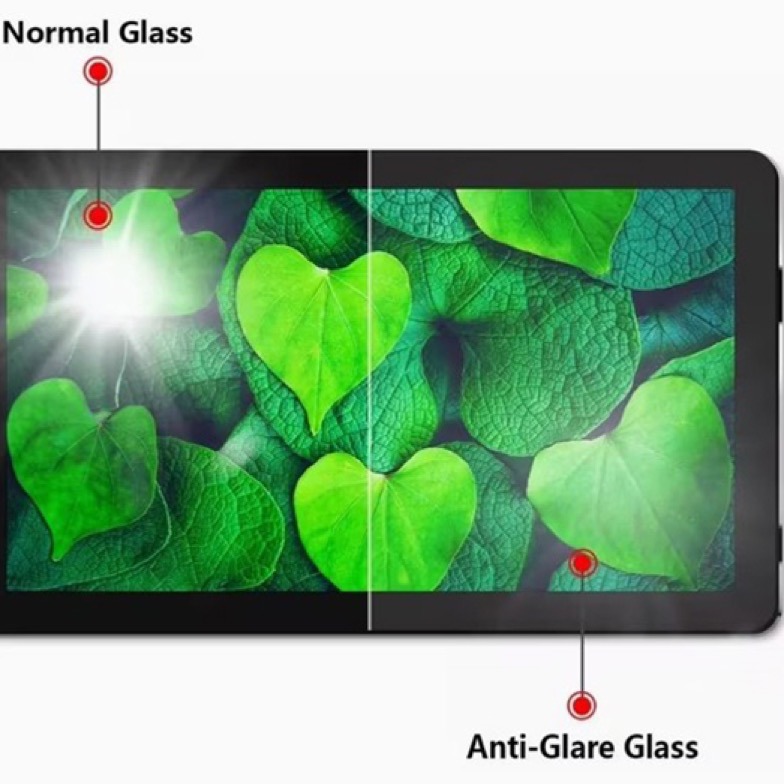

 AG Anti-Glare Principle & Optical Performance

l  Superior Anti-Glare Performance: Matte AG surface (haze 5-15% adjustable) reduces reflectivity to <1-2%, eliminating mirror-like reflections for clear viewing in bright ambient light or direct sunlight.

l  Custom Thickness Options: Available from ultra-thin 0.7mm (lightweight applications) to robust 4mm for maximum impact protection.

l  9H Hardness Tempered Glass: Scratch-resistant, shatter-proof, and chemically strengthened for long-lasting durability (6H/7H/9H options).

l  High Optical Clarity: Light transmittance ≥92% (up to 97% with optional AR coating). Preserves true colors and contrast.

l  Smooth Touch Experience: Compatible with capacitive touch screens; maintains excellent sensitivity and stylus support.

l  Additional Coatings Available: AF (anti-fingerprint, oleophobic), AR (anti-reflection) for enhanced performance.

l  Custom Fabrication: CNC cutting, edge polishing, chamfering, silk-screen printing, drilling, and 3M adhesive backing. Sizes from small panels to large displays (up to 32"+).

l  Wide Temperature Range: Reliable from -40°C to 180°C for industrial and outdoor use.

l  Eco-Friendly & Certified: RoHS compliant, high safety (breaks into small harmless pieces).

Product Specifications

Applications

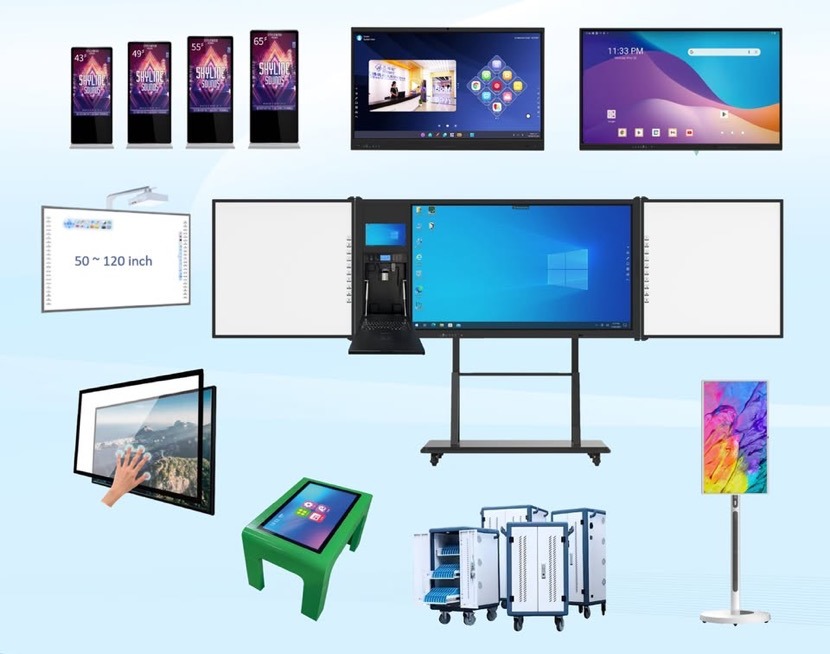

   l   Industrial Human-Machine Interfaces (HMI)

   l  Medical and Laboratory Equipment Displays

   l  Public Kiosks and Interactive Terminals

   l  Automotive and Marine Touch Screens

   l  Outdoor Digital Signage

   l  Smart Home and Consumer Electronics

Why Choose Fuxin Glass?

In bright or outdoor environments, standard glass causes glare that reduces visibility and causes eye fatigue. Our AG treatment diffuses light for comfortable, glare-free viewing while the tempered construction protects the underlying LCD/LED panel from scratches, impacts, and daily wear. Businesses worldwide trust our custom solutions for reliable performance in challenging conditions.

FAQ

Q: What haze options are available for this AG cover lens?

We offer fully adjustable haze from 5% to 15%. Lower haze provides higher clarity for indoor precision displays; higher haze delivers stronger glare reduction for outdoor and high-brightness environments.

Q: Is this AG glass compatible with capacitive touch screens?

Yes. The surface roughness (Ra) is precisely controlled at 0.02–0.08μm, which maintains excellent capacitive touch sensitivity and supports stylus operation without interference.

Q: Can I add AF or AR coating on this AG glass?

Absolutely. We support composite coating solutions including AG+AF, AG+AR and AG+AF+AR, to add anti-smudge and higher transmittance performance based on anti-glare function.

Q: What thickness is recommended for industrial HMI panels?

2.0mm or 3.0mm is the most common choice for industrial HMIs, balancing structural strength and overall device weight. For high-impact scenarios, 4.0mm thickened version is recommended.

Q: Is this AG glass suitable for outdoor use?

Yes. With tempered structure and stable AG surface, it performs reliably in outdoor sunlight and wide temperature ranges, and is widely used in outdoor kiosks and digital signage.
