FUXIN AG+AF composite tempered glass belongs to the Touchscreen Cover Glass product line. It integrates micro matte AG anti-glare surface and nano oleophobic AF anti-fingerprint coating on high-strength aluminosilicate tempered substrate, solving glare, fingerprint residue and scratch damage pain points of industrial touch panels.
This dual-function protective glass balances excellent optical performance and heavy-duty durability, perfectly adapting to factory workshops, medical wards, bright retail spaces and outdoor high-light environments. We support two AG manufacturing processes (chemical etching / spray coating), full-size customization from 7 to 32 inches, 2.5D CNC chamfered edge and silk screen printing service. Optional extra AR anti-reflective coating to form 3A triple composite glass.
l Advanced AG Anti-Glare Coating: Etched or specially coated surface diffuses reflected light, dramatically reducing glare from overhead lights, sunlight, or bright workshops. Maintain crystal-clear readability even in challenging lighting conditions.

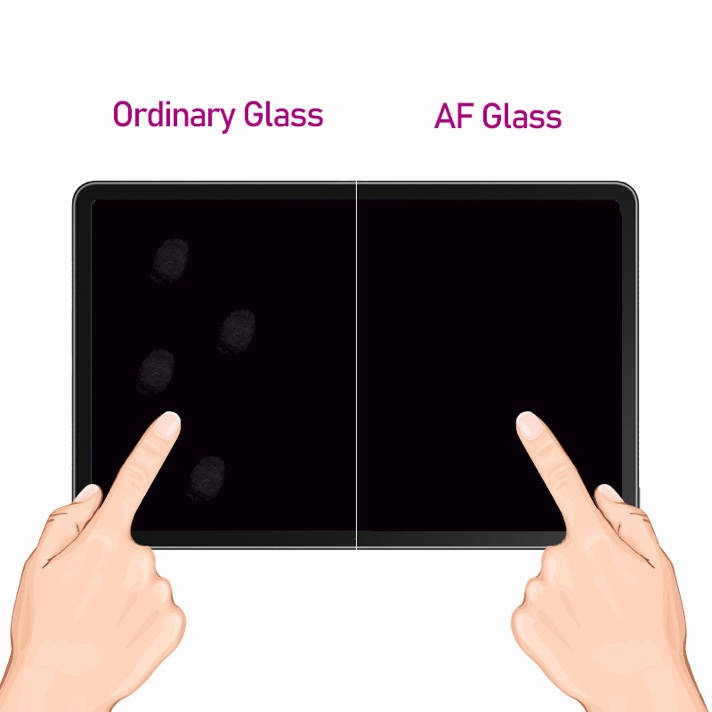

l AF Anti-Fingerprint Nano-Coating: Oleophobic layer repels oils, smudges, and fingerprints. Screens stay clean longer and wipe effortlessly, reducing maintenance time in high-touch environments.
l Premium Tempered Glass Construction: 9H hardness rating offers superior scratch and impact resistance. Protects against tools, debris, and accidental knocks common in industrial settings.
l High Optical Clarity: Maintains excellent light transmission with minimal color distortion for precise operator visibility and touch accuracy.
l Easy Installation & Perfect Fit: Designed for seamless integration on industrial monitors, touch panels, and custom displays. Bubble-free application with precise edge-to-edge coverage options.
l Built for Harsh Conditions: Resistant to chemicals, dust, and temperature fluctuations typical in manufacturing floors, outdoor installations, and heavy-duty equipment.
Material | Aluminosilicate tempered glass |
Hardness | 9H (Pencil), IK04 impact |
Thickness | 0.7mm, 0.9 mm, 1.1 mm (size‑dependent) |
Gloss (60°) | 40–55 GU (matte, non‑glare) |
Reflectance (450–650 nm) | < 1.5% (perceived) |
Haze | ≤ 4% |
Light Transmittance | ≥ 92% |
AF Contact Angle | ≥ 112° (water) |
Temperature Range | -30 °C to +85 °C |
Edge Finish | 2.5D CNC polished, < 0.2 mm chamfer |
Available Sizes | 7″ – 32″ diagonal, custom cut to OEM specs |
Industrial HMI panels and control systems
Factory automation displays
Public kiosks and self-service terminals
Medical and laboratory equipment screens
Outdoor or high-ambient-light digital signage
Rugged tablet and monitor protection in warehouses/logistics
Q: What is the difference between spray coating and etched AG glass?
Spray coating is more cost-effective and efficient for production, while offering good uniformity. Etching provides a more permanent surface but at higher cost.
Q: Does AG coating affect touch sensitivity?
No. Our AG tempered glass is fully compatible with projected capacitive touch panels and maintains excellent responsiveness.
Q: What thicknesses are recommended for different applications?
2-3mm for lighter consumer devices; 4-6mm for robust industrial or outdoor use.
Q: Do you offer anti-fingerprint or anti-reflective options?
Yes – we provide combined AG + AR + AF coatings upon request.
As a professional manufacturer under Touchscreen Cover Glass category, FUXIN supplies custom AG anti-glare AF anti-fingerprint composite tempered glass dedicated to industrial touch displays. If you need scratch-resistant, easy-clean matte touch protective glass for factory HMIs, medical devices or outdoor kiosks, send your dimension drawings and optical requirements for free samples & factory wholesale prices. Related products you may view: chemically etched AG glass, single-layer AF glass, high-transmittance AR display glass.
