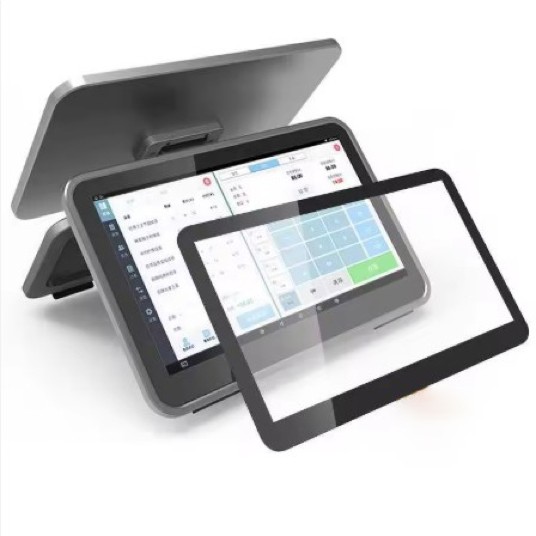

FUXIN AG+AF composite tempered glass belongs to the Touchscreen Cover Glass product line, specially customized for global touchscreen OEM manufacturers. It combines chemical etched matte AG anti-glare texture and vacuum oleophobic AF anti-fingerprint coating on high-strength aluminosilicate / soda-lime glass substrate, reaching 94.5% standard light transmittance (up to 95% with optional AR upgrade).
Thickness ranges from 0.5mm ultra-thin to 4mm heavy-duty, with fully adjustable gloss (30–125 GU) and haze (3–20%) to match different lighting environments. 9H high surface hardness ensures scratch resistance, and stable coating durability over 3,000 friction cycles. Full OEM custom services including CNC cutting, 2.5D edge, multi-color silk screen printing and sensor hole punching are available, widely supplied to automotive infotainment, medical monitors, industrial HMIs and retail POS equipment factories.
Material | High-alumina silicate glass / Soda-lime glass (customizable) |
Thickness | 0.5mm – 4.0mm (customizable) |
Max Size | 600×1100mm (up to 1500×1900mm available) |
Surface Treatment | AG (Anti-Glare) + AF (Anti-Fingerprint) |
Reflectance | <1% (single-sided) |
Transmittance | ≥94.5% (≥95% with AR option) |
Surface Hardness | ≥9H (pencil hardness) |
Gloss Level (60°) | Customizable: 30±10 / 60±10 / 70±10 / 90±10 / 110±10 / 125±10 GU |
Surface Roughness (Ra) | 0.04–0.15μm (customizable) |
Haze | 3–20% (customizable) |
Coating Durability | 3,000–5,000 friction cycles |
Our AG+AF anti-fingerprint cover glass is trusted by manufacturers across multiple industries:

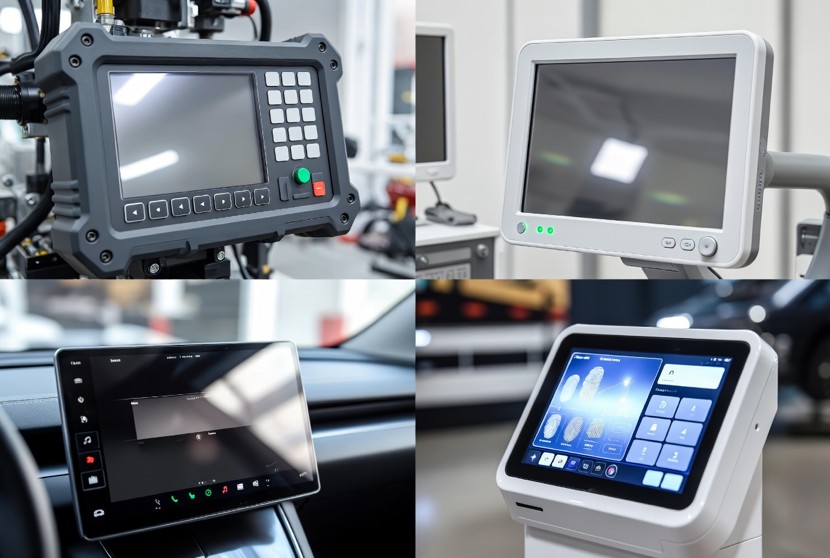

Industry | Applications |
Automotive | Infotainment displays, instrument clusters, head-up displays, navigation screens |
Medical | Patient monitors, diagnostic equipment, handheld medical terminals, surgical displays |
Industrial | HMI terminals, factory automation displays, control panels, outdoor equipment |
Retail & Kiosks | POS systems, interactive kiosks, ATMs, vending machines |
We offer comprehensive customization to meet your specific design and performance requirements:
l Sizes & Shapes: Custom cutting (CNC, water jet, diamond blade) to your exact dimensions
l Thickness: 0.33mm to 10mm
l Gloss Levels: 20–130 GU (adjustable)
l Surface Treatments: AG only, AF only, AG+AF, AG+AR+AF (3A)
l Edge Finishing: Polished, safety, beveled, 2.5D, pencil, straight edge
l Printing: Silk-screen printing, UV printing, laser engraving (logos, borders, icons)
l Hole Patterns: Custom cutouts for cameras, sensors, buttons
AG (Anti-Glare) uses surface etching to scatter light and reduce reflections. AF (Anti-Fingerprint) applies a thin oleophobic layer that repels oils for easier cleaning.
Our 94.5% transmittance ensures minimal light loss, preserving display vibrancy—superior for most OEM applications.
Yes. We support full customization from 0.5mm to 4mm with precise cutting, tempering, and printing options.
It offers significantly better usability in real-world lighting and handling conditions while maintaining high optical performance.
Contact us for tailored OEM pricing, samples, and production timelines.
