Engineered for precision applications, our custom small dimension tempered LCD screen cover glass delivers exceptional durability, optical clarity, and advanced surface performance. Available in thicknesses of 0.5mm, 0.7mm, 1mm, and 2mm, these covers are ideal for compact displays in medical equipment, industrial controls, portable devices, automotive dashboards, smart home panels, and more.
Thickness | 0.5mm / 0.7mm / 1.0mm / 2.0mm (±0.05mm tolerance) |
Size | Small to medium dimensions (custom cut per drawing) |
Size Tolerance | ±0.1mm |
Coatings | Single or multi-layer AG/AR/AF (options for one or both sides) |
Surface Hardness | ≥7H (pencil hardness); ≥9H available |
Light Transmittance | ≥88% (standard); ≥94.5% with AR coating |
Reflectance (with AR) | ≤0.3% (single-sided) |
Gloss (AG) | 80±10 to 100±10 (customizable) |
Surface Roughness (AG) | ≤0.3μm; typical 0.05–0.15μm |
Edge Treatment | Round / Pencil / Straight / Beveled / Stepped / 2.5D |
Ultra-Thin & Precision Dimensions: Supports small sizes (down to a few centimeters) with tight tolerances. Perfect for space-constrained LCD, TFT, and touch modules.
Chemically Strengthened Tempering: 3-5x stronger than standard glass. High impact and scratch resistance (up to 9H hardness).
Advanced Multi-Coatings:
AG (Anti-Glare): Reduces reflections and glare for better visibility in bright or outdoor environments.
AR (Anti-Reflective): Boosts light transmittance (up to 98%+), minimizing ghosting and improving contrast.
AF (Anti-Fingerprint): Oleophobic coating for easy cleaning, smudge resistance, and a consistently clear surface.
Precision Printing & Customization: Silk-screen printing for logos, icons, borders, or functional markings. Custom shapes, cutouts, edges (chamfered, polished), holes, and stepped designs.
Material Options: High-quality soda-lime, aluminosilicate, or equivalent. Low-iron for maximum clarity.
Factory Direct Advantages: Full OEM/ODM support, from prototyping to mass production. Flexible MOQ, competitive pricing, and reliable global shipping.

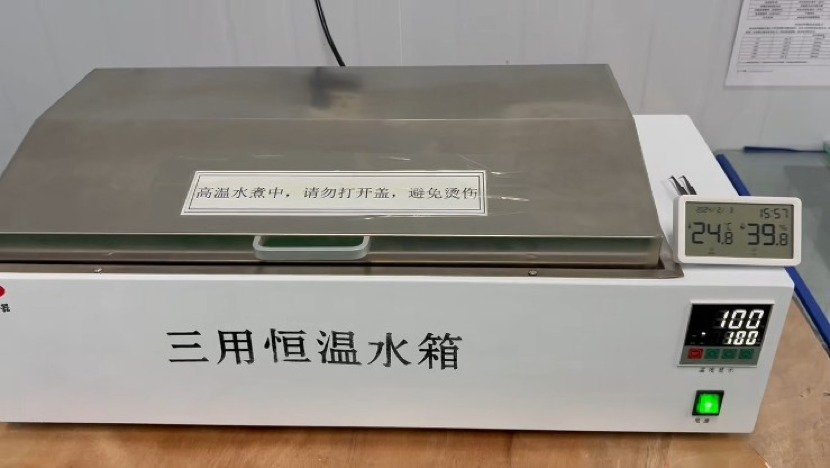

Boiling Water Test: Immersion in 100°C boiling water simulates years of humidity and temperature exposure - verifying coating adhesion and stability
We rigorously subject our anti-glare (AG) glass to standardized boiling water tests to validate its extreme environmental resilience. This accelerated aging process involves immersing the coated glass in boiling water (typically 100°C) for a sustained period, simulating years of exposure to high humidity and temperature fluctuations.
This stringent test verifies the exceptional adhesion and chemical stability of our AG coating. A glass that passes this test guarantees that the anti-glare properties will not degrade, blister, or peel over time, even in demanding conditions. It is a testament to the long-term optical clarity, touch sensitivity, and reliable performance of our cover glass solutions for industrial HMI, outdoor kiosks, and medical equipment.

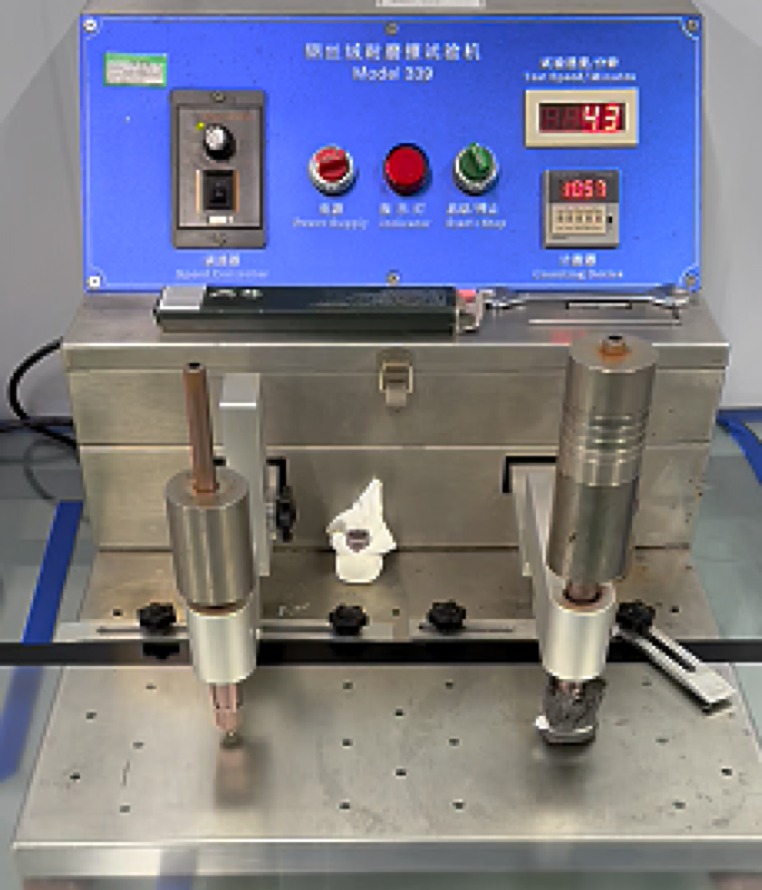

Steel Wool Test: #0000 grade steel wool scrubbing under pressure simulates years of cleaning and accidental scratches — our AG coating demonstrates exceptional resistance to scratches, haze, and wear.
To ensure our anti-glare (AG) glass maintains its flawless appearance and function under demanding use, we subject it to rigorous steel wool abrasion testing. This test involves applying significant pressure and repeatedly scrubbing the coated surface with standardized #0000 grade steel wool for hundreds of cycles.
This aggressive procedure directly simulates years of potential cleaning, accidental scratches, and friction from everyday operation in industrial environments. Our AG coating is engineered to pass this test with outstanding results, demonstrating exceptional resistance to scratches, haze, and wear. The surface integrity and matte finish remain intact, guaranteeing that the anti-glare performance and visual clarity will not degrade over the product's lifespan.
