FUXIN custom OEM antimicrobial (AM) tempered glass front panel belongs to the AM Anti microbial Glass product line. It is specially designed for high-traffic public touch equipment such as self-service kiosks, POS terminals, ATMs, medical displays and digital signage. The glass integrates long-lasting silver ion antibacterial technology with high-strength tempering process, inhibiting 99.9% of common bacteria on the touch surface, while maintaining high optical clarity and IK07+ impact resistance. Supports composite matching of AG anti-glare, AF anti-fingerprint and AR anti-reflective coatings, fully customizable according to customer drawings.
Material | Tempered Glass (Chemically or Thermally Strengthened) |
Thickness | 0.7mm – 12mm (customizable) |
Glass Size | Customized According to Customer Drawings |
Glass Shape | Square, Round, Irregular Graphics, (Customized) |
Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
Antimicrobial Technology | Silver ion or equivalent (JIS Z 2801 tested) |
Coatings | AM (Anti-microbial), AG (Anti-Glare), AF (Anti-Fingerprint), AR (Anti-Reflective) |
Light Transmittance | 91%+ (depending on coatings) |
Impact Resistance | IK07+ or higher |
Custom Options | Cutouts, holes, printing, edge polishing, ITO for touch |
Applications | Self-service kiosks, POS terminals, ATMs, medical displays, industrial HMIs |

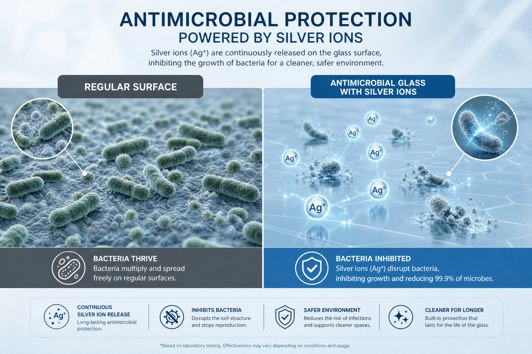

Superior Antimicrobial Protection: Inhibits up to 99.9% of bacteria (including common strains like E. coli and MRSA) through advanced silver ion or equivalent technology. Reduces cross-contamination risks in public spaces.
Exceptional Durability: Fully tempered for high impact and scratch resistance. Withstands daily heavy use in public terminals while maintaining structural integrity.
Crystal-Clear Optics: High light transmittance (typically 91%+) with optional Anti-Glare (AG), Anti-Fingerprint (AF), and Anti-Reflective (AR) coatings for optimal visibility in any lighting.
Easy Maintenance & Cost Savings: Antimicrobial surface reduces cleaning frequency and chemical use. Long-lasting performance lowers total cost of ownership compared to standard glass or films.
Custom OEM Flexibility: Tailored to your exact specifications for seamless integration into self-service hardware.
Full in-house production: glass cutting, tempering, antibacterial treatment, vacuum coating and CNC processing all completed in our factory, stable quality control.
Standard-compliant antibacterial performance: JIS Z 2801 test standard, complete compliance documents and performance test reports available.
Flexible OEM customization: support small-batch prototype verification and large-scale mass production, fully customized according to equipment drawings.
Multi-coating integrated solution: one-stop matching of AM+AG+AF+AR composite functions, no need for separate multi-supplier procurement.
Rich project experience in public terminal and medical display industries, mature supply capacity for global OEM/ODM partners.
Q: What makes this glass antimicrobial?
It incorporates proven antimicrobial agents that disrupt bacterial cell walls, delivering consistent >99% reduction rates even after heavy use.
Q: Is it suitable for outdoor or high-impact public use?
Yes. Tempered construction and optional coatings ensure durability against impacts, scratches, and environmental factors.
Q: Can you provide fully custom OEM solutions?
Absolutely. We support custom sizes, shapes, thicknesses, cutouts, and multi-layer optical bonding from low to high volume.
Q: How long does the antimicrobial effect last?
It is integrated for long-term efficacy throughout the product's service life, unlike temporary sprays or films.
Q: Do you offer testing and certification?
Yes, full compliance documentation and performance reports are available.
