FUXIN high-transmittance multi-layer AR tempered cover glass belongs to the AR Anti Reflective Glass product line. It adopts advanced vacuum magnetron sputtering technology to deposit precision multi-layer optical films on ultra-clear low-iron tempered glass substrate, reducing single-side surface reflectance to below 1.5% (typically 0.5–1.0%) and boosting average visible light transmittance to over 95%, with peak transmittance reaching 98–99% under optimized conditions.
Compared with matte AG anti-glare glass, this high-clarity AR solution delivers sharper contrast, true color reproduction and zero haze, making it ideal for high-end monitors, medical diagnostic displays, industrial HMIs, kiosks and automotive instrumentation. It supports chemical or thermal tempering, with full custom fabrication and optional AF anti-fingerprint / AG anti-glare composite coatings.

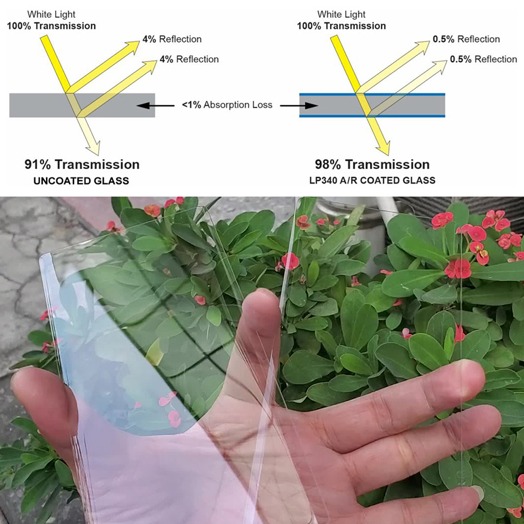

Ordinary uncoated glass produces about 4% reflection on each surface, resulting in ~8% total light loss and only ~91% actual transmittance. Our multi-layer AR coating uses optical destructive interference: nano-scale dielectric films with precisely controlled refractive index and thickness are deposited on the glass surface, so that reflected light waves from different film interfaces cancel each other out.
l Single-side reflectance reduced to ≤1.5%, typically controlled at 0.5–1.0%
l Average visible light transmittance increased to 95%+, peak up to 98–99%
l Eliminates screen ghosting and glare, significantly improves image contrast and color vividness
l Wide viewing angle with no color shift, stable optical performance at different viewing positions
l Dense hard film layer with strong adhesion, resistant to long-term wiping and environmental aging
l Ultra-High Transmittance: 95%+ average visible light transmission (significantly higher than standard glass ~89-92%), enhancing brightness and color accuracy.
l Multi-Layer AR Coating: Advanced vacuum magnetron sputtering technology minimizes reflections (single-side <1.5%, often ~0.5-1.0%), eliminating ghosting and glare.
l Premium Tempered Durability: 6H-9H surface hardness, impact/shatter resistant, with options for AF (anti-fingerprint) or AG additions.
l Crystal-Clear Optics: Maintains true color reproduction and wide viewing angles for professional-grade displays.
l Custom Fabrication: CNC cutting, edge polishing, drilling, silk-screen printing, and exact size matching for seamless integration.
l Reliable Performance: Stable in -40°C to 180°C ranges, RoHS/REACH compliant, long-lasting coating adhesion.
Material | Ultra-clear low-iron tempered glass |
Transmittance | ≥95% (up to 98-99% peak) |
Reflectance | ≤1.5% single-side (often <1%) |
Thickness Options | 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.0mm+ |
Surface Hardness | 6H - 9H Mohs |
Coating Type | Multi-layer AR (AR+AF optional) |
Temperature Range | -40°C ~ 180°C |
Custom Options | CNC cut, drill, print, edge finish |

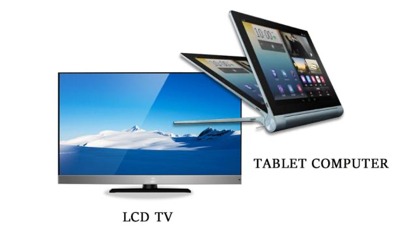

l Touch screen displays and interactive panels
l High-end computer monitors and professional displays
l Industrial HMI control panels and equipment
l Medical diagnostic monitors and devices

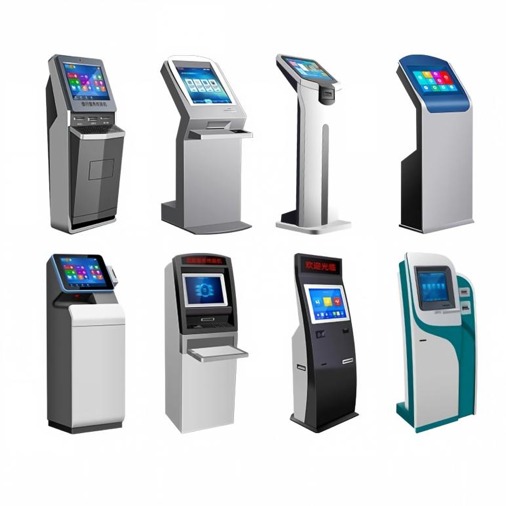

l Kiosks, POS systems, and public information displays
l Automotive and marine instrumentation
It is premium multi-layer AR coated tempered glass with 95%+ light transmittance that greatly reduces reflections (<1.5%) for sharper contrast, better clarity, and reduced glare on touch screens and high-end monitors.
Average visible light transmittance reaches 95%+ (peak up to 98-99%), with surface reflectance reduced to ≤1.5% thanks to advanced multi-layer AR coating.
Yes. It is specifically designed for capacitive touch screens, industrial HMIs, medical displays, and high-end monitors, maintaining excellent touch sensitivity while enhancing optical performance.
Common thicknesses: 0.7mm to 5.0mm+. Full custom service includes CNC cutting, drilling, edge polishing, silk screen printing, and optional AF/AG coatings.
AR glass maximizes clarity and transmittance with minimal reflection. Standard glass has ~8% reflection, while AG glass diffuses light but reduces sharpness. AR is ideal for high-end display clarity.
We focus on high-performance optical display glass solutions for professional and industrial scenarios. Our in-house vacuum magnetron sputtering production line ensures precise control of each film layer, delivering consistent batch quality and competitive factory direct pricing.
l Full in-house production from glass tempering to optical coating, no secondary outsourcing
l 100% optical inspection for transmittance and reflectance before delivery
l Flexible support for prototype development and large-scale mass production
l One-stop composite coating solution: AR, AR+AF, AR+AG all available
l Mature supply experience for global high-end display and medical device brands
