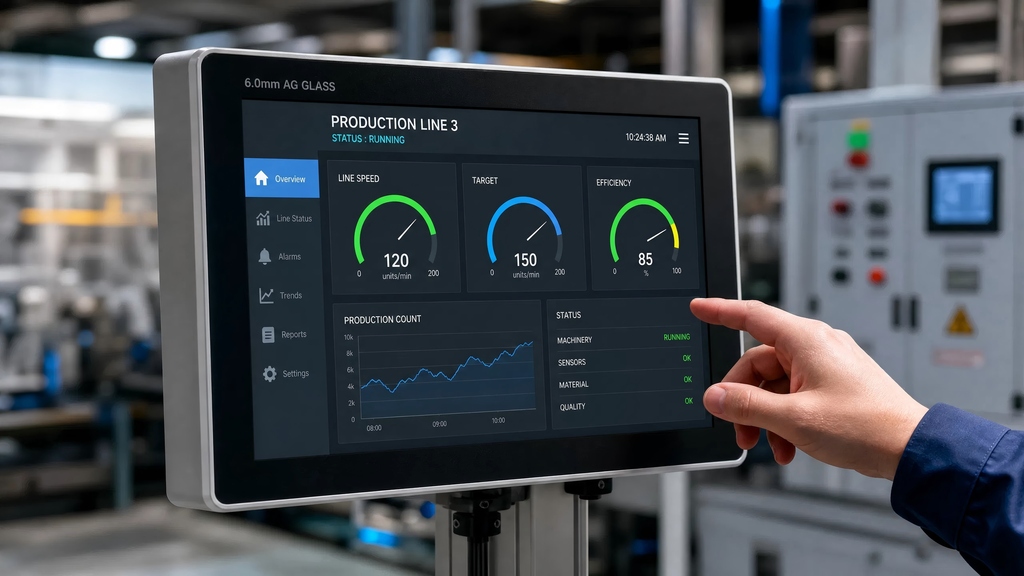

Engineered for demanding industrial environments, our 6.0mm thick Anti-Glare (AG) glass delivers exceptional performance as a protective cover for Human Machine Interface (HMI) panels. The chemically etched or coated matte surface effectively diffuses reflections and glare from bright factory lights, sunlight, or outdoor conditions, ensuring operators maintain clear visibility and precise touch control even in challenging lighting.

Key Benefits

• Superior Glare Reduction: Matte AG surface minimizes reflections for enhanced readability in high-ambient-light settings.

• High Impact & Mechanical Strength: 6.0mm thickness provides excellent impact resistance (up to IK10 level when properly mounted), protecting sensitive displays from shocks, vibrations, and accidental impacts.

• Durability in Harsh Environments: Resistant to chemicals, dust, oils, scratches (high surface hardness), and temperature fluctuations typical in industrial settings.

• Optical Performance: High light transmittance (>89%) with controlled haze for sharp image clarity without excessive diffusion.

• Touch Compatibility: Optimized surface for smooth capacitive touch operation, even with gloves.

• Customization Ready: Precision cutting, edge polishing (flat/chamfered), tempering/chemical strengthening, printing, and additional coatings (AR/AF).

Technical Specifications

• Thickness: 6.0mm (±0.2mm tolerance)

• Material: High-quality soda-lime or aluminosilicate glass (options for chemically strengthened)

• Surface Treatment: Anti-Glare (AG) etching or coating – customizable haze/gloss levels

• Light Transmittance: >89% (typical)

• Haze: Optimized for industrial use (typically 8-15% range; customizable)

• Impact Resistance: High (IK10 capable with proper integration)

• Hardness: Enhanced scratch resistance

• Max Size: Up to 1200mm x 2400mm (custom cutting available)

• Edge Treatment: Polished, beveled, or safety edges

• Operating Temperature: -40°C to +85°C (or wider depending on strengthening)

• Compliance: RoHS, REACH, industry standards for HMI applications

Applications

• Industrial HMI panels and SCADA systems

• Factory automation control interfaces

• CNC machines and machinery operator panels

• Outdoor or semi-outdoor kiosks and information displays

• Ruggedized touch screens in harsh manufacturing, oil & gas, marine, and transportation environments

Why Choose Our 6.0mm AG Glass for Your HMIs?In industrial settings, standard thin glass often fails under mechanical stress or suffers from severe glare, leading to operator errors and downtime. Our 6.0mm solution balances robust protection with excellent optical performance. The thicker profile distributes impact energy effectively while the AG treatment ensures consistent visibility, improving productivity and safety.
Customization Options
We offer full customization to match your exact HMI requirements: specific dimensions, hole drilling, silk-screen printing (logos, icons), additional AR (anti-reflective) or AF (anti-fingerprint) coatings, and more.
Quality Assurance

• Strict quality control with optical testing, impact tests, and abrasion resistance verification.

• Traceable materials and professional processing for consistent performance.
