FUXIN high-performance double-sided AR tempered glass belongs to the AR Anti Reflective Glass product line. Available in standard 3mm and 4mm thicknesses with custom thickness options, it adopts multi-layer dielectric AR coating on both glass surfaces via vacuum magnetron sputtering technology. This treatment cuts single-side surface reflectance to under 1% and boosts overall light transmittance to over 98%, far exceeding the 91–92% transmittance of ordinary uncoated glass.

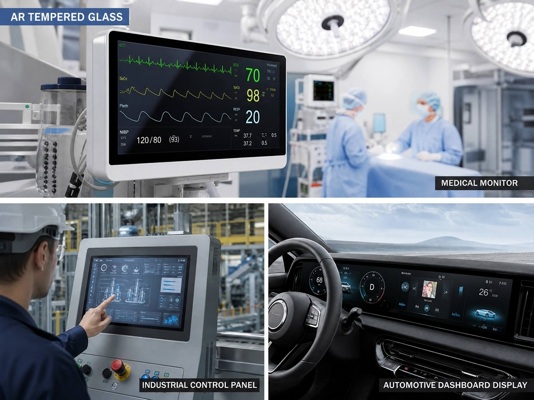

Widely used in LCD monitors, industrial control panels, medical diagnostic displays, museum showcases, automotive dashboards and outdoor digital signage, it delivers true-to-life color reproduction, glare-free viewing and high-strength tempered safety protection. We support full custom fabrication including precision cutting, edge polishing, hole drilling, silk screen printing and optional AF oleophobic topcoat.

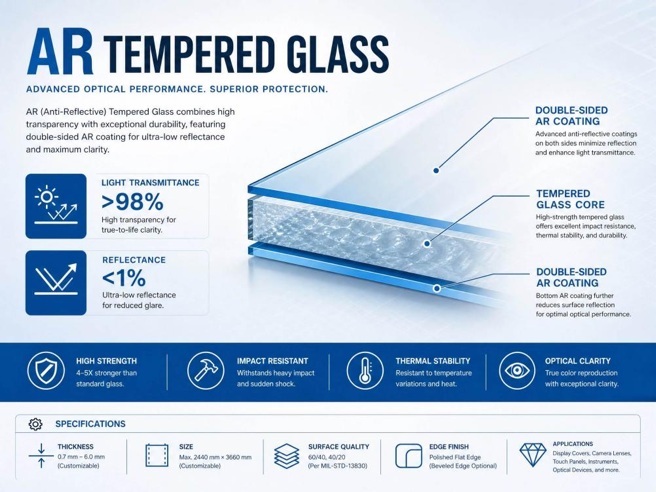

Ordinary float glass produces about 4% reflection on each surface, totaling around 8% light loss. Our AR coating uses thin-film optical interference principle: nano-scale multi-layer dielectric films are deposited on both front and back glass surfaces via advanced vacuum magnetron reactive sputtering, so that reflected light waves cancel each other out.
l Single-side reflectance drops from ~4% to less than 1%
l Total light transmittance rises from ~91% to over 98%
l Uniform coating across the whole panel, no color deviation at different viewing angles
l Strong film adhesion, resistant to long-term wiping and environmental aging
Material | Gorilla/AGC/Corning/Panda Glass or Other Brand |
Thickness | 3mm and 4mm (custom thicknesses available) |
Coating | Multi-layer dielectric Anti-Reflective (AR) coating on double sides |
Transmittance | >98% (significantly higher than standard glass ~91-92%) |
Surface Hardness | ≥ 7H |
size | as your requirement |
shape | as your requirement |
Edge Finish | Smooth / 2.5D / Safety bevel |
Reflection Reduction | Lowers surface reflection from ~8% (uncoated) to under 1% per side |
Customization | Cut to size, edge polishing, holes/drilling, printing, special shapes, oleophobic topcoat options |
Durability | Scratch-resistant, easy to clean, suitable for indoor/outdoor use with proper framing |
l Glare-Free Viewing: Perfect for bright environments, retail stores, museums, control rooms, and outdoor digital signage.
l Superior Clarity & Contrast: Viewers see true-to-life colors and sharper images with reduced eye strain.
l Increased Brightness: Higher transmittance means displays can run at lower backlight levels, saving energy while maintaining vibrancy.
l Professional Protection: Tempered glass adds safety and longevity to sensitive LCD/OLED panels.
l Custom Solutions: Tailored to your exact specifications - from small prototypes to large-scale production.
Compared to standard glass or single-sided AG (anti-glare) coatings, our double-sided AR solution offers maximum transparency without the hazy effect often seen in matte finishes.
We employ state-of-the-art vacuum magnetron reactive sputtering to deposit precision nano-scale multi-layer optical films on both glass surfaces. This advanced process ensures consistent coating quality, exceptional adhesion, and superior optical performance across every panel.
Unlike off-the-shelf solutions, we produce each order to your exact specifications - size, thickness, edge finish, hole patterns, and silk screen printing - ensuring perfect integration with your display assembly.
Every panel undergoes comprehensive optical testing to verify transmittance and reflectivity specifications, plus mechanical and environmental testing to ensure long-term durability.
As a professional glass processing manufacturer, we eliminate middlemen to deliver premium AR glass at competitive wholesale prices.
AR (Anti-Reflective) coating uses thin-film optical layers to minimize light reflection through destructive interference, maximizing transmittance.
AR provides high clarity and low reflection with a glossy look. AG (Anti-Glare) diffuses light for a matte finish but can reduce sharpness.
Yes - fully customized cutting, tempering, coating, and fabrication.
Contact us for prototype and bulk pricing. Flexible MOQ for customized orders.
Yes, it meets industry safety standards for tempered glass.
It allows more backlight to reach the viewer, improving perceived brightness and energy efficiency while delivering vivid colors.
