Our Custom AF Anti-Fingerprint Coated Cover Glass delivers the perfect balance of optical clarity, tactile smoothness, and long-lasting smudge resistance for access touch panels and interactive display applications. Available in a versatile thickness range of 0.7 mm to 3.0 mm, this cover glass is precision-engineered to meet the demanding requirements of modern touch interfaces across access control systems, smart home devices, industrial HMIs, medical equipment, and automotive displays.
Whether you're designing next-generation access control terminals, smart home control panels, or rugged industrial touch interfaces, our custom cover glass solution offers the durability, clarity, and fingerprint resistance your product demands.
Material | Ultra-clear soda-lime glass |
Thickness | 0.7 mm – 3.0 mm (and beyond upon request) |
Shape | Rectangular, circular, irregular, 2.5D curved edges |
Surface Treatment | AF(Anti-Fingerprint),AG(Anti-Glare),AR (Anti-Reflective) |
Printing | Silk screen, UV printing, laser engraving — single or multi-color |
Edge Finishing | Polished, safety, 2.5D, beveled, pencil edge |
Light Transmittance | ≥92% |
Surface Hardness | 6H – 9H (pencil/Mohs scale) |
Water Contact Angle | ≥110° – 115° |
Oil Contact Angle | ≥70° – 75° |
Abrasion Resistance | >3,000 cycles (steel wool, 1,000g load) |
Friction Coefficient | ≤0.15 |
Dimensional Tolerance | ±0.5 mm (large size); ±0.1 mm (small size) |
Tempering Options | Chemical strengthening or physical tempering |
Advanced AF Anti-Fingerprint Coating: Nano oleophobic layer (water contact angle ≥110°) repels oils, fingerprints, and smudges. Fingerprints are less visible and wipe away easily with a dry cloth, reducing cleaning frequency and maintaining crystal-clear visibility in high-traffic environments.
Custom Thickness Range (0.7–3.0 mm): Choose the perfect balance of durability and touch sensitivity. Thinner options (0.7–1.1 mm) optimize sensitivity for capacitive touch; thicker (2.0–3.0 mm) provide enhanced impact resistance for public or rugged use.
High Optical Clarity: ≥92% light transmittance (higher with optional AR). Preserves sharp display quality without distortion.
Chemically Strengthened Durability: Superior surface hardness (typically 6H–9H) and impact resistance. Customizable with edge polishing, CNC cutouts, holes, chamfered/2.5D edges, and silk-screen printing (black borders, logos, icons).
Smooth, Premium Touch Experience: Low-friction surface improves finger glide, gesture response, and overall user satisfaction.
Reliable in Demanding Environments: Excellent chemical resistance, temperature stability, and abrasion resistance for long-term performance in access control installations

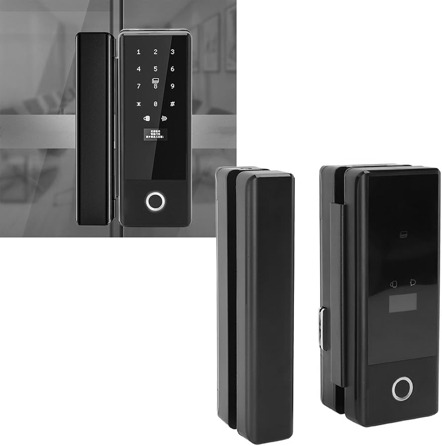

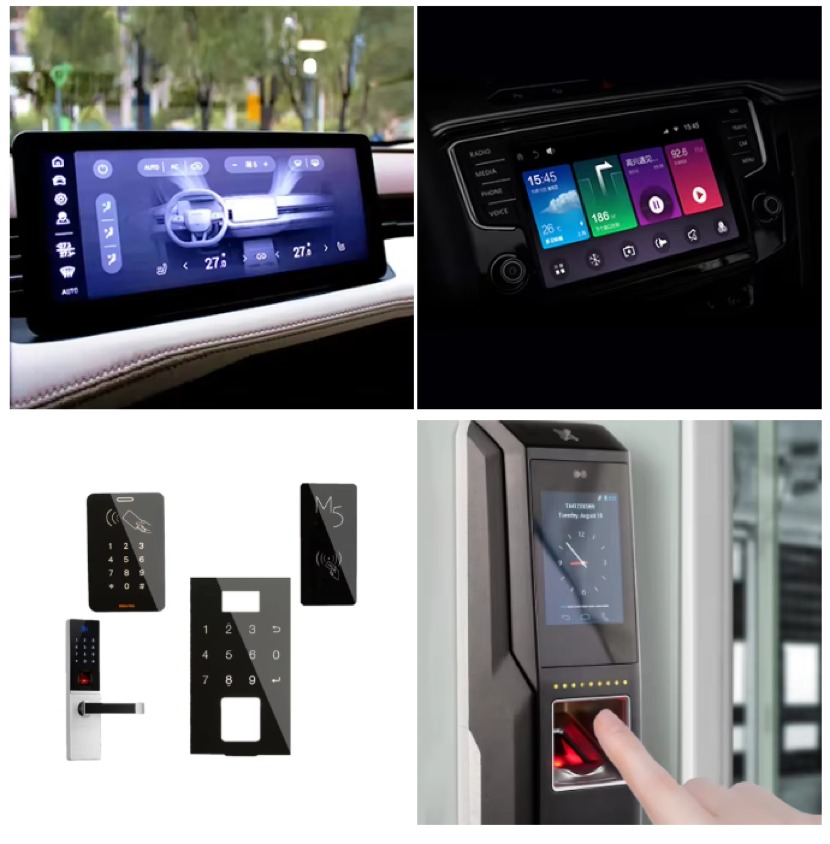

Access control systems and security panels
Building entry touch interfaces
Time & attendance terminals
Industrial HMI and control panels
Kiosks, smart locks, and public information displays
l 13+ Years of Industry Experience - Specialized in cover glass R&D, production, and export
l Global Reach - Serving customers in over 80 countries worldwide
l Full In-House Production - From raw glass processing to coating and printing, all under one roof
l Flexible MOQ - Supporting both small-batch prototyping and large-volume production
l Technical Support - Expert guidance on material selection, coating optimization, and integration
l Competitive Pricing - Direct manufacturer pricing with no middleman markup
No. The coating is only 10–20 nanometers thick, making it completely transparent and invisible to the naked eye.
Our industrial-grade AF coating withstands over 3,000 abrasion cycles, typically covering the 2–3 year primary lifespan of most devices under normal usage.
Yes. We support full customization including irregular shapes, curved edges, and precision-drilled holes.
We offer a versatile range from 0.7 mm to 3.0 mm, with additional thickness options available upon request.
Yes. We support small-batch trial production and sample orders for validation before full-scale manufacturing.
