Why AG Anti-Glare Cover Glass Matters for Interactive Displays

AG (anti-glare) glass uses chemical etching or specialized coatings to scatter incoming light, dramatically reducing reflections and glare in bright environments. Unlike standard glass, it improves readability under ambient lighting while maintaining high light transmission (typically >89%).

However, the thickness of the glass substrate is not just a specification — it fundamentally affects:

 • Capacitive touch sensitivity

 • Impact and vandal resistance

 • Overall weight and structural rigidity

 • Optical performance (transmittance and haze)

Selecting the wrong thickness can lead to poor touch accuracy, excessive weight, or premature failure in high-traffic installations.

Key Factors to Consider When Selecting AG Cover Glass Thickness

Several engineering and application-specific variables determine the ideal thickness:

Display Size and Structural Rigidity

Larger interactive panels (55–86 inches) require thicker glass to prevent warping or flexing under pressure. Thinner glass may bow on big screens, creating air gaps or uneven touch response.

Touch Technology and Sensitivity

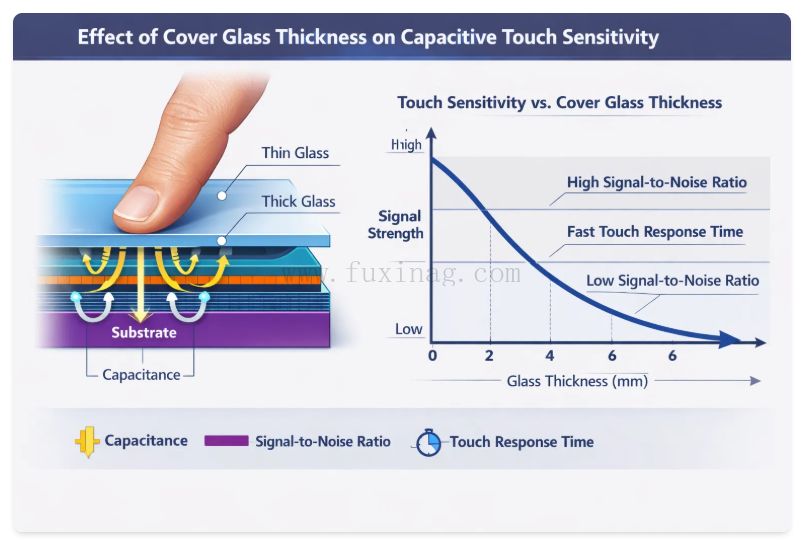

Capacitive touch sensors perform best with thinner cover glass (closer proximity to the sensor layer improves signal strength). Ultra-thin options (0.7–2 mm) deliver superior responsiveness for consumer and office applications.

Environmental Conditions

 • Indoor office/retail: 2–4 mm often suffices.

 • Outdoor or high-ambient-light kiosks: 6–12 mm+ for added strength and weather resistance.

   Thicker tempered AG glass withstands temperature fluctuations, UV exposure, and vandalism better.

Durability and Impact Resistance

Public or industrial use demands chemically strengthened or tempered glass. Thicker substrates (4 mm and above) offer superior drop and scratch resistance after AG etching.

Weight and Installation Constraints

Every extra millimeter increases weight significantly on large panels. Architects and integrators must balance strength with mounting feasibility and shipping costs.

Optical Performance

Thicker glass slightly reduces light transmittance. High-quality low-iron AG glass minimizes this effect while maintaining haze levels of 5–25% for optimal anti-glare performance.

Recommended AG Anti-Glare Cover Glass Thickness by Application

Common Mistakes to Avoid

Choosing thickness based solely on cost instead of application needs.

Ignoring touch controller specifications when going ultra-thin or extra-thick.

Overlooking low-iron glass for better transmittance in bright environments.

Forgetting post-AG strengthening (chemical tempering) for public displays.

Final Thoughts: Partner with Experts for Optimal Results

Selecting the perfect AG anti-glare cover glass thickness transforms an interactive display from "good enough" to truly exceptional — delivering crystal-clear visuals, responsive touch, and years of reliable service.

At Fuxin Glass, we specialize in custom-engineered AG solutions with precise thickness control, advanced chemical etching, and full tempering options tailored to your exact interactive display requirements. Whether you need ultra-thin precision glass or rugged 12 mm panels for outdoor kiosks, our team delivers industry-leading optical performance and durability.

Ready to optimize your next interactive display project? Contact our technical specialists today for a free consultation and custom thickness recommendation.
